#9-003 TURBO PEDESTAL O-RINGS - VITON

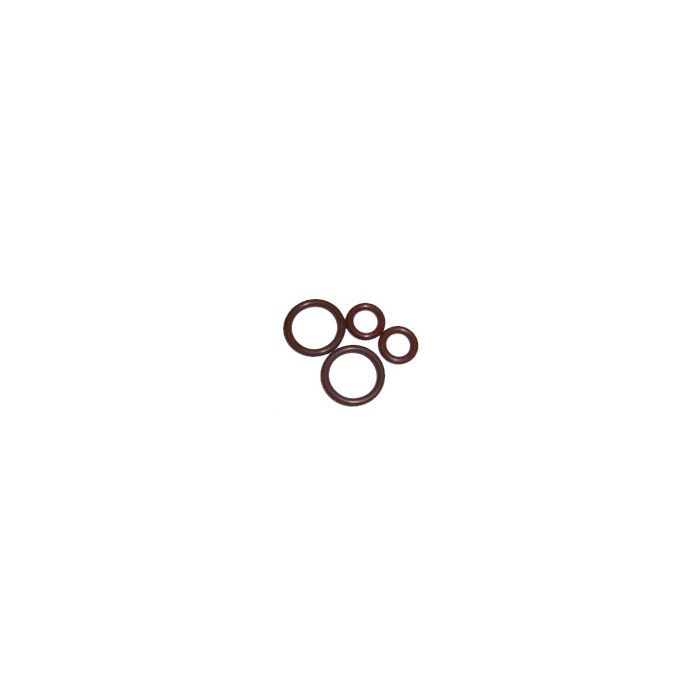

4 Viton O-rings for top and bottom of the turbo pedestal.

2 large and 2 small.

Order quantity of 1 for each package of 4 o-rings.

Model Year 94-03 7.3L diesel

Color: Brown

Durometer Shore: Shore A: 90 Viton SAE Specification: SAE J200

Instruction Sheet: None - Turbo must be removed to install these o-rings.

1999-2003: Turbo to pedestal torque - 35 - 37 lb-Ft / Pedestal to block torque - 18 lb-ft (per Garrett).

1994-1997: Turbo to pedestal torque and Pedestal to block torque - 18 lb-ft

Ford Part number reference: F4TZ-6N653-A, F4TZ-6N653-B

Item #9-003
