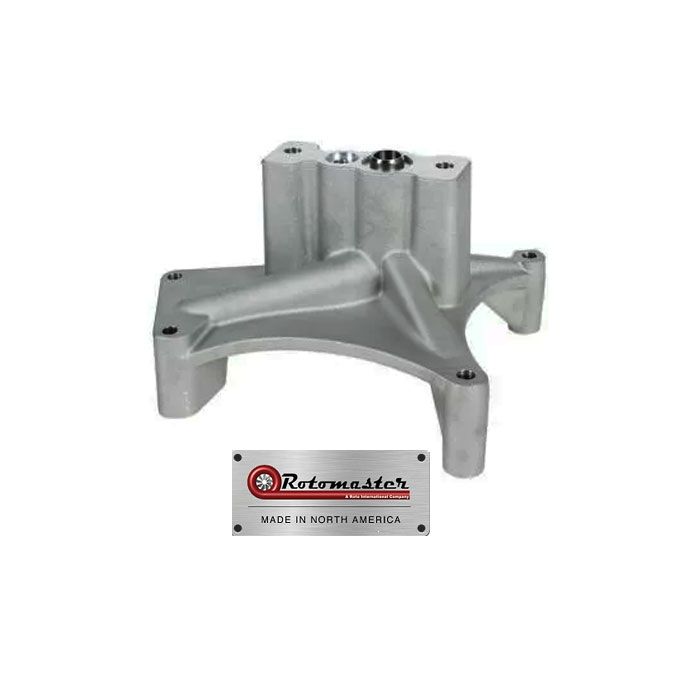

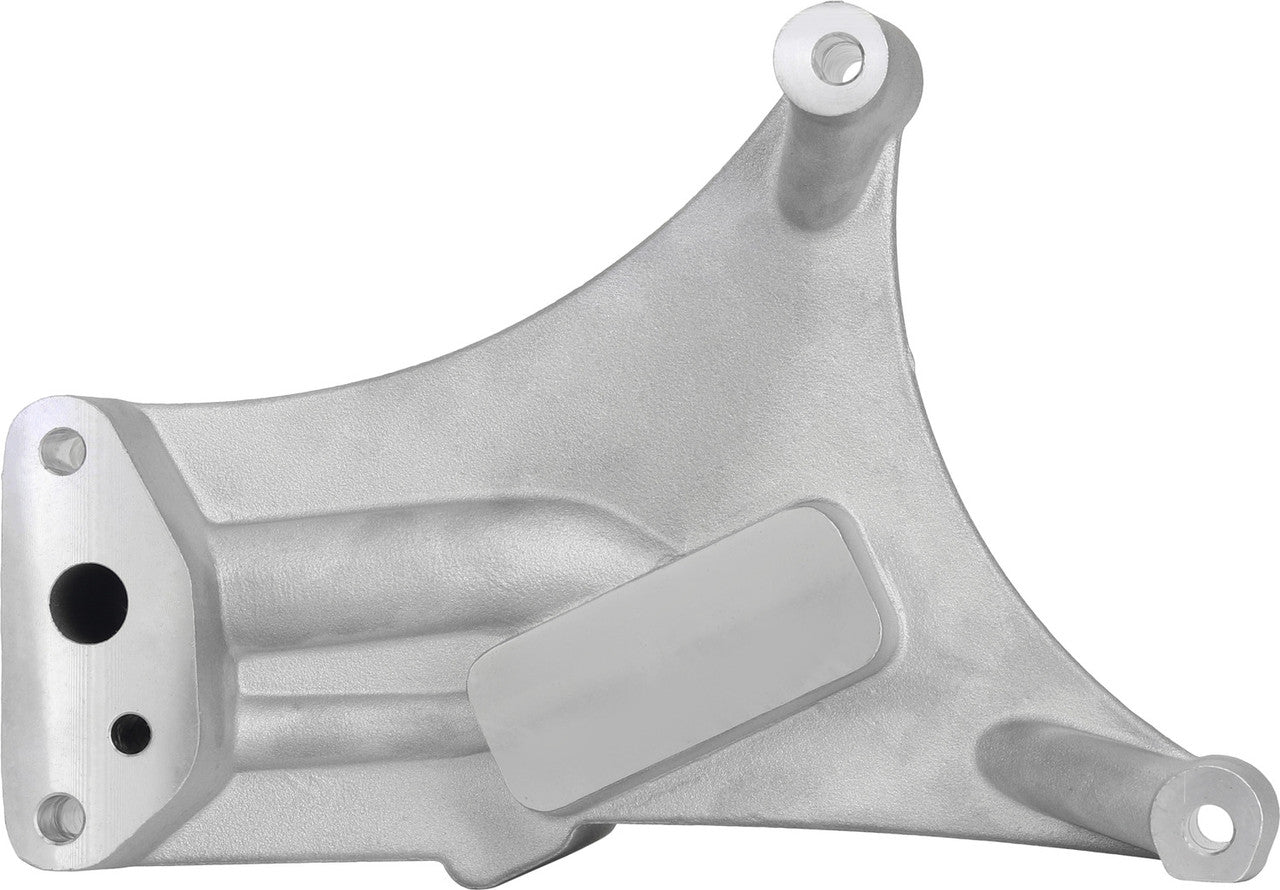

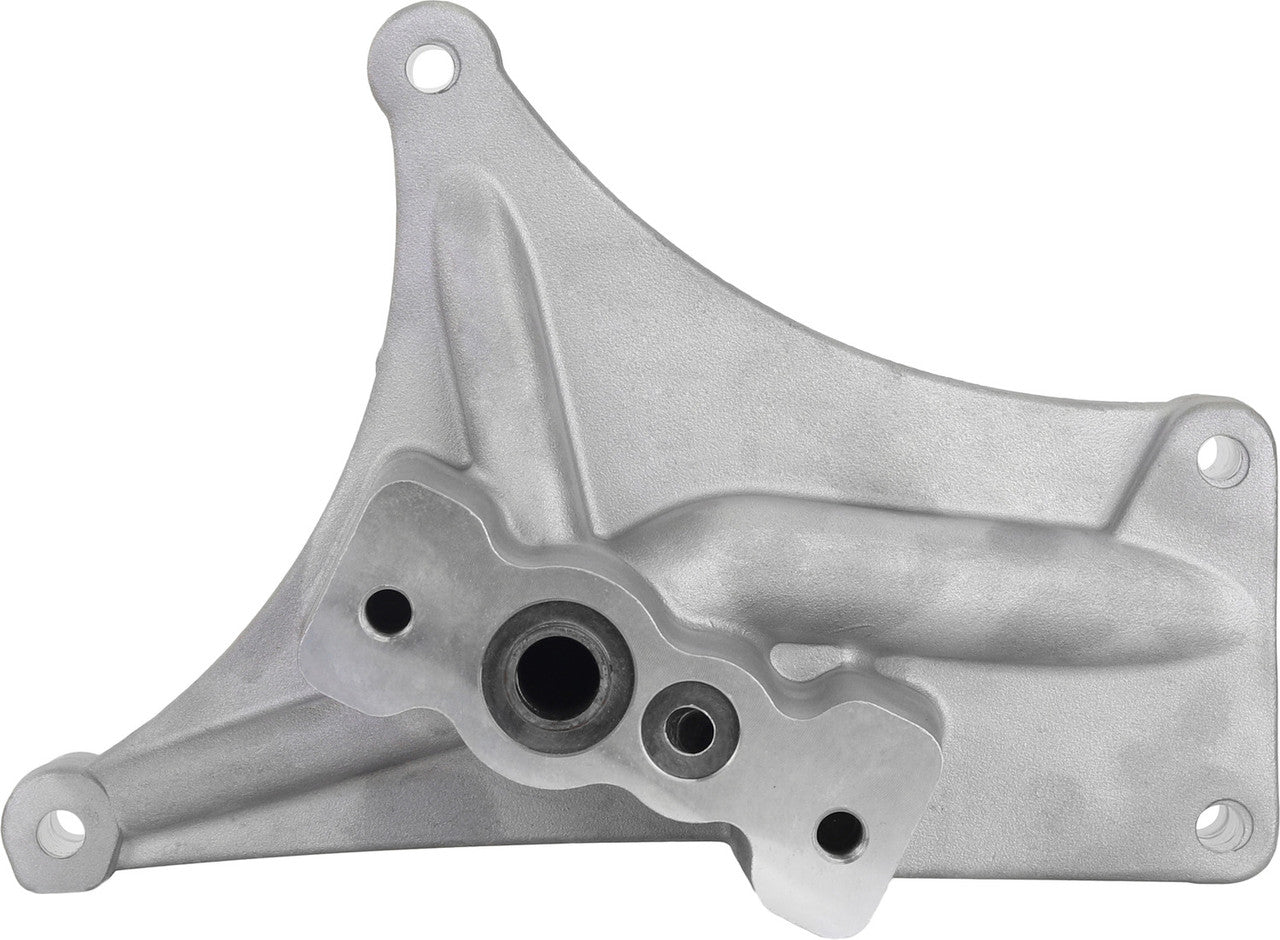

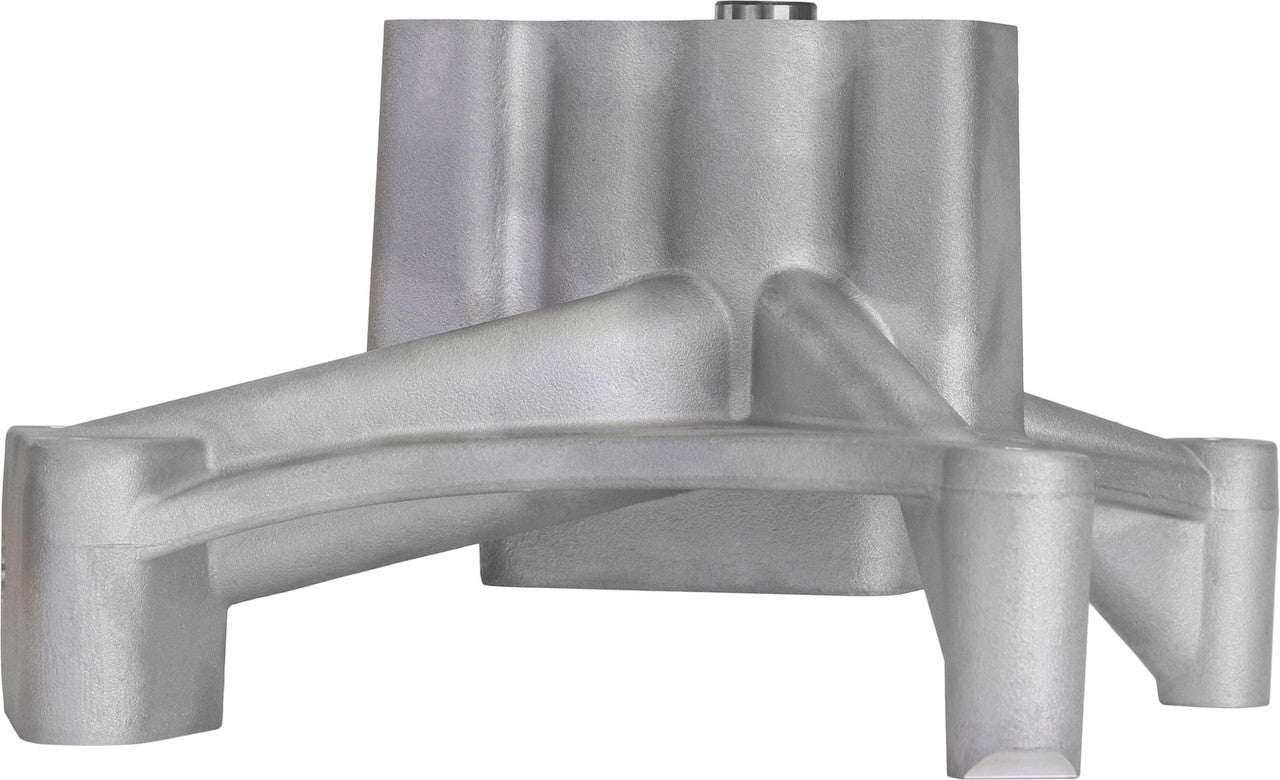

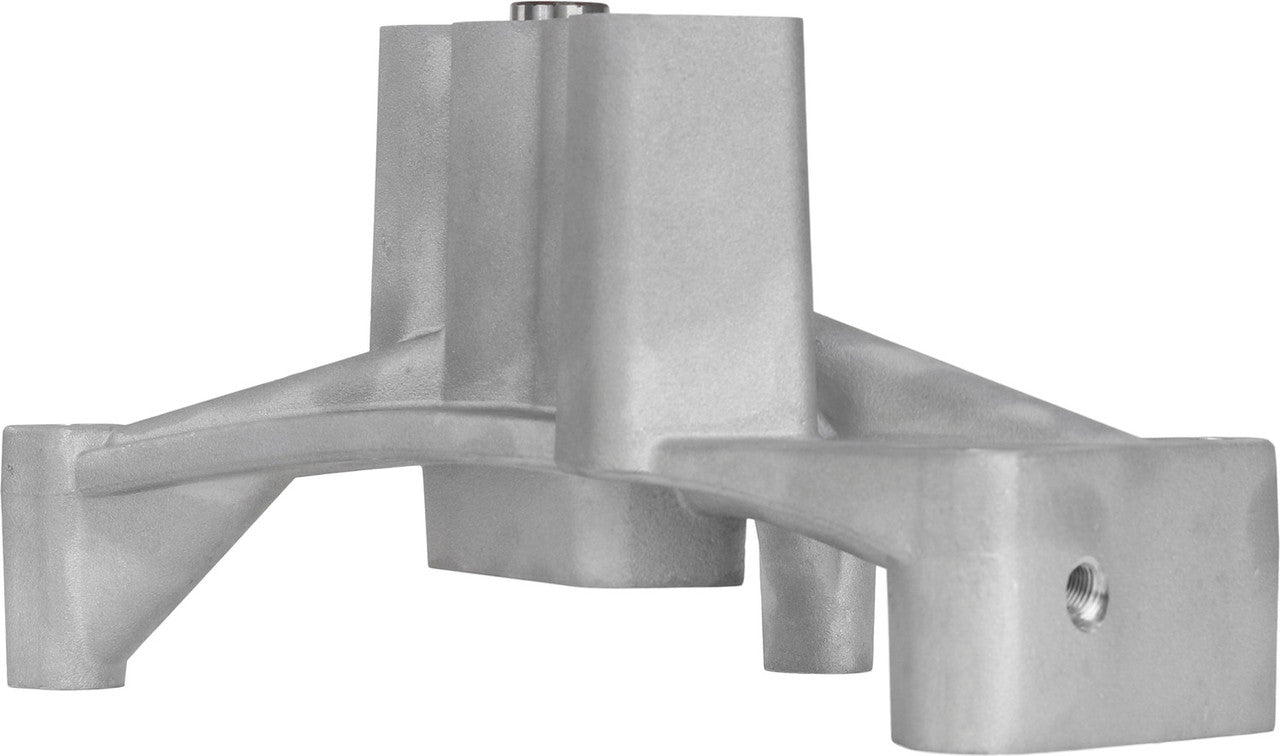

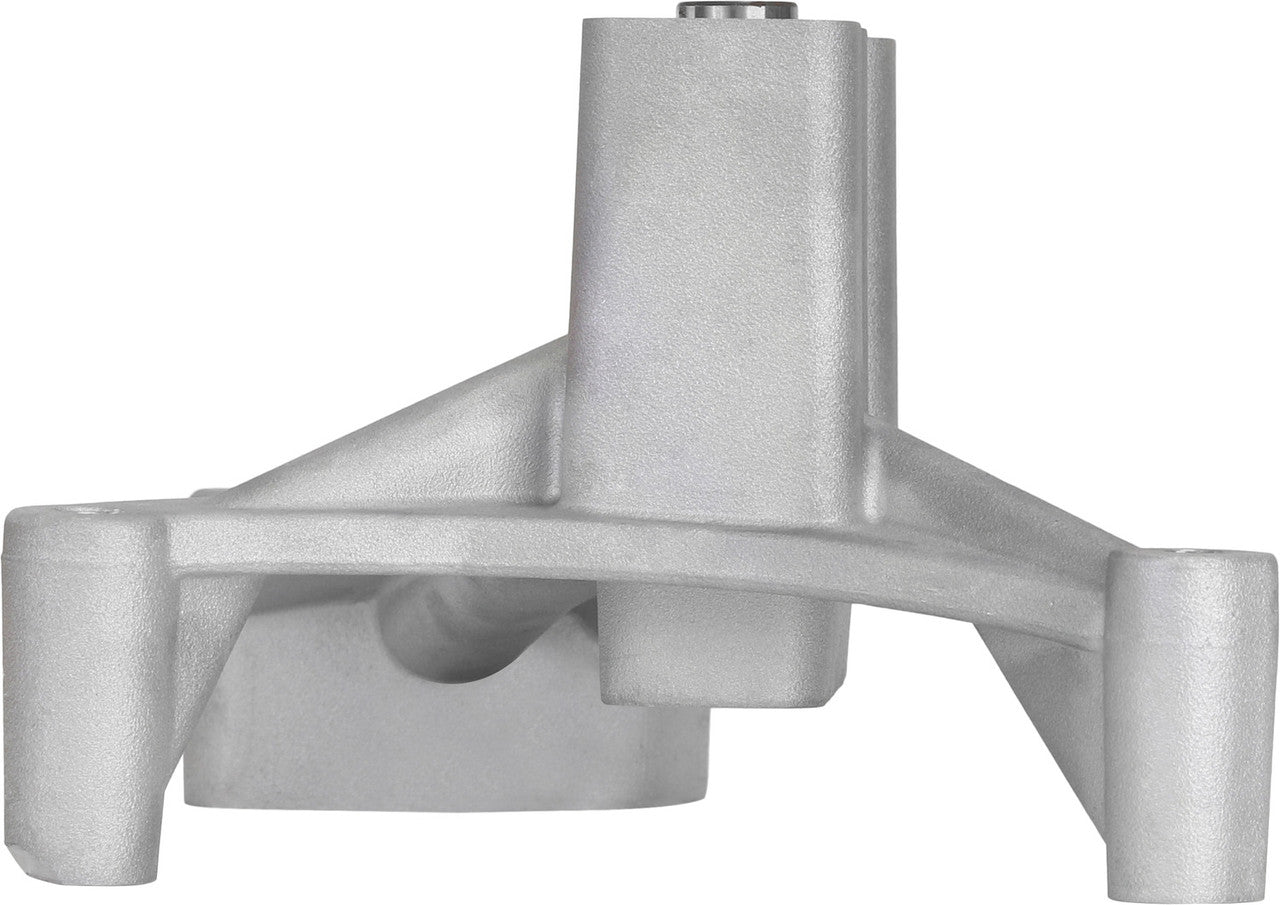

Rotomaster Non-EBPV Pedestal for 1999 1/2 -2003 E and F Series
GTP38 or GTP38R Turbo**
Exhaust Back Pressure Valve actuator rod leaking? This is the most common use of the Non-EBPV pedestal, just eliminate the EBPV altogether or if you are upgrading to a Garrett GTP38R, this pedestal manufactured by Rotomaster is a simple drop-in solution.
**Offroad applications only

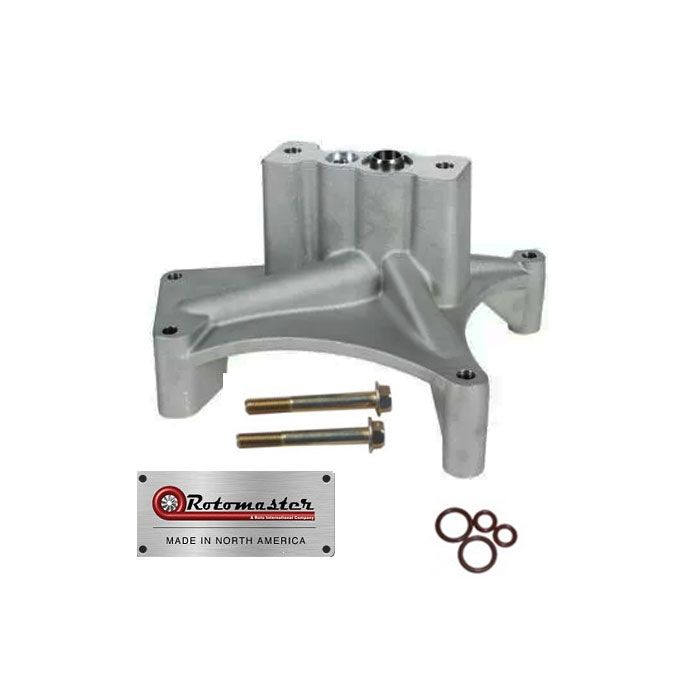

The Rotomaster non EBPV pedestal comes with 2 new mounting bolts an both upper and lower pedestal o-rings.
If you are planning to eliminate the factory EBPV pedestal, you will still have to "gut" the exhaust housing to remove the Back Pressure Valve from the exhaust port or you can replace the exhaust port with a non-EBPV outlet also from Rotomaster or Garrett. Just add it from the drop down menu at the top of this page.
You can find the High Flow outlet or the new 12 point bolts in the "Related Products" section in the upper right of this page.
The 12 point bolts that connect the turbo downpipe adapter to the exhaust housing have a reputation of stretching and loose their ability to hold tightly with age. Garrett recommends never reusing the 12 point bolts that have been used on cast iron. Used bolts will unscrew themselves and will lead to severe boost loss, higher EGTs and possible damage to the turbo. It is recommended to replace these bolts when installing a new exhaust downpipe adapter.
The torque spec for the 12 point bolt is 185-215 lbs-in and Garrett instructs to use anti-seize compound on the new bolts.
Elimination of the EBP system on the pedestal will leave the electrical connector for the EBP solenoid abandoned. When the PCM attempts to engage the EBP valve, it will store a soft code since it no longer can find the solenoid.
This soft code can be eliminated buy simply bending the axial leads of a resistor so it will plug into the abandoned electrical connector. It can be trimmed and bent over on the plug and wrapped with electrical tape. This resistor will fool the PCM into believing it is still controlling the EBP solenoid.
You can add one of the resistors to you order by checking the checkbox at the top of this page or ordering it separately.
Rotomaster is ISO certified to meet the demand for high quality manufacturing required for its market segment, and has developed with such standards to be recognized in the industry as a ‘top tier’ company. Rotomaster offers a wide range of products for Off Highway, Industrial, Commercial Transport, Marine, Light Truck and Passenger Car diesel/gas applications worldwide.
