RotoMaster

#14-201 ROTOMASTER GTP38/TP38 270° TURBO REBUILD KIT - 1994.5-2003

#14-201 ROTOMASTER GTP38/TP38 270° TURBO REBUILD KIT - 1994.5-2003

$69.79 USD
$127.99 USD $69.79 USD
Sale Out of stock
Shipping calculated at checkout.
Rotomaster TP38/GTP38 270° Turbo Rebuild kit

This kit comes with all the necessary parts to rebuild the journal bearing assembly in the 1994.5 - 2003 stock Turbos - 7.3L Diesel .

Rotomaster - Made in North America

A1380305N

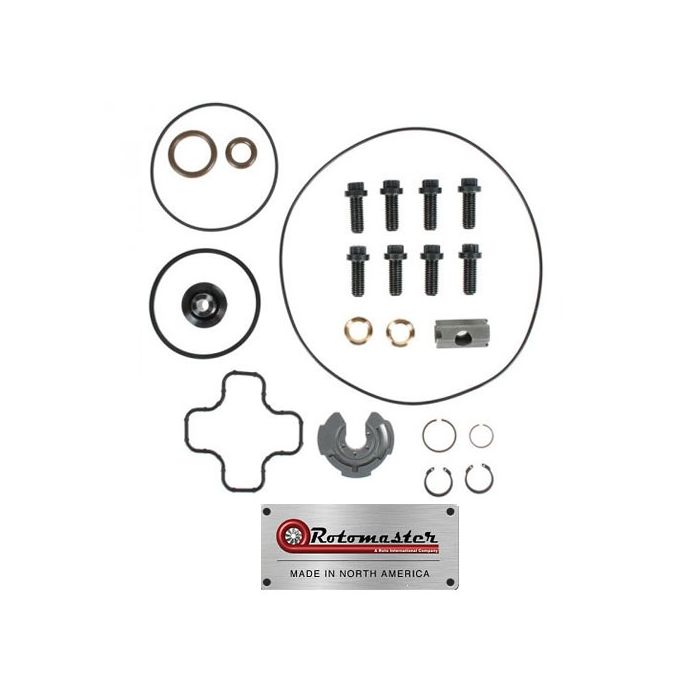

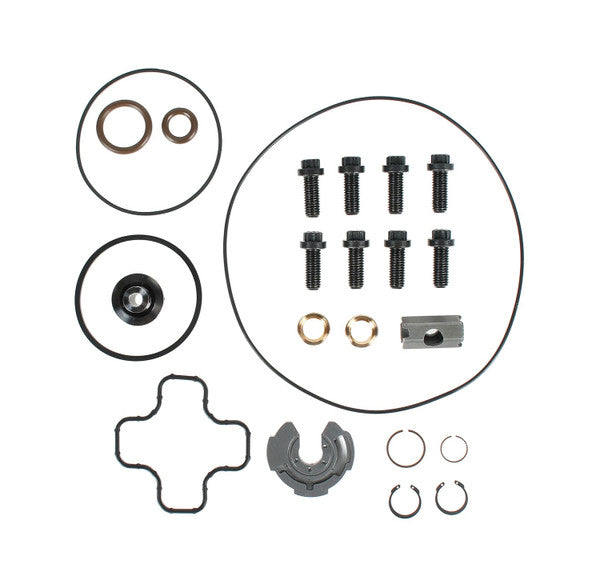

 Parts included in the standard kit:

Backplate O-Ring
Compressor side Carbon Seal
2 Bearings (thrust and journal)
8 Bolts for the main housing and exhaust
Piston Ring (turbro side)
Thrust Collar
Turbo Pedestal o-rings (one set only)
TP-38 turbo outlet o-ring
TP-38/Early 99 compressor housing o-ring

Optional parts can be added to this rebuild kit by selecting the options from above.


Rotomaster is ISO certified to meet the demand for high quality manufacturing required for its market segment, and has developed with such standards to be recognized in the industry as a ‘top tier’ company. Rotomaster offers a wide range of products for Off Highway, Industrial, Commercial Transport, Marine, Light Truck and Passenger Car diesel/gas applications worldwide.

Complete Bolt replacement kits.  It is recommended to replace the:

a. (4) 12 point bolts that mount the exhaust housing to the center cartridge
b. (5) 12 point bolts that mount the compressor housing to the aluminum flat back plate.
c. (7) - 12 point bolts that fasten the EBPV housing to the turbine housing.
You can add these bolts to your order by using the check boxes at the top of this page.

 https://cdn.shopify.com/s/files/1/0782/1403/7811/files/EBPVrebuild.pdf?v=1688585937

https://cdn.shopify.com/s/files/1/0782/1403/7811/files/EBPVrebuild.pdf?v=1688585937

Turbo removal instructions by Garrett:
