Garrett

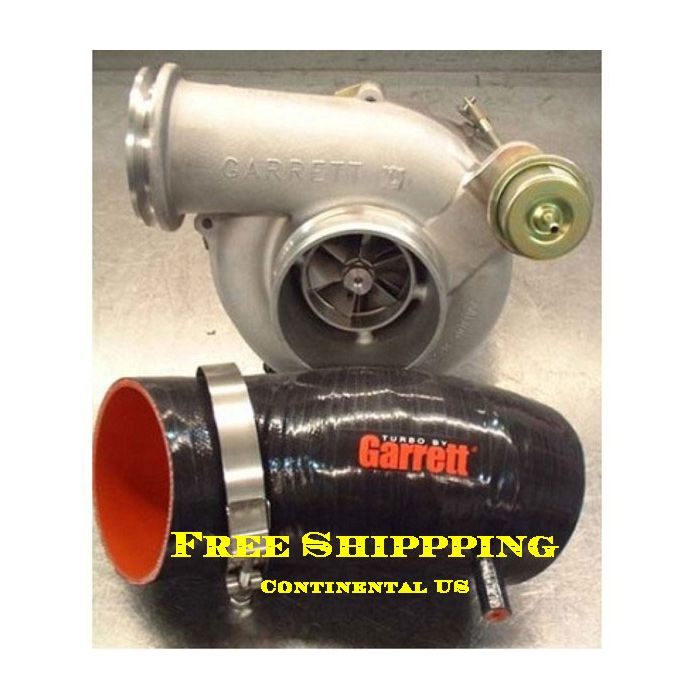

#14-075 GARRETT GTP38R HIGH PERFORMANCE TURBO 739619-5004S

#14-075 GARRETT GTP38R HIGH PERFORMANCE TURBO 739619-5004S

Regular price $2,060.89 USD
Regular price Sale price $2,060.89 USD
Sale Out of stock
Shipping calculated at checkout.
UPS will require that someone is present at delivery for a signed receipt. Please have someone available to receive the delivery.

Garrett GTP-38R PowerMax Ball Bearing Turbo
1999 1/2 - 2003 7.3L Drop in High Performance Turbo

NO CORE CHARGE

FREE SHIPPING
(Continental US only
Alaska, Hawaii, International and Territories
will incur additional shipping charges)


Experience quicker spool-ups and increased power and performance with a Garrett High Performance Turbo.
The Garrett 739619-5004S GTP-38R is the most popular replacement turbo charger for the stock GTP-38 turbo on the 7.3L diesel. This turbo will only fit on the F series pickups and Excursions from 1999 1/2 through 2003.

A complete "Drop In" Performance replacement turbo as it comes as a complete unit with no adapters or other engine modifications needed to install.

For protection against UPS mis-delivering this to an incorrect address, THIS UNIT WILL SHIP SIGNATURE REQUIRED.



Improved features on the GTP-38R:

    • A Garrett exclusive ball bearing cartridge for unbeatable response, efficiency, and durability. Elimination of the thrust bearing eliminates Failures at elevated boost levels
    • The 88mm GT compressor wheel provides 33% more flow than the stock 80mm wheel.
    • Ported shroud housing improves compressor flow range for surge control
    • 1.00 A/R turbine housing for free flowing exhaust with reduced back pressure and up to 200° F reduction in exhaust gas temperature
    • Maximum recommended boost level is 40psi

        Stock Turbo Garrett Turbo Kit
      HP 210whp @ 2700rpm 290whp @ 3000rpm*
      Torque 420lbƒ· ft @ 500rpm 550lbƒ· ft @ 400rpm*
           * with performace chip
      and exhaust upgrade



Download: Parts list and Installation instructions.
Includes:
both upper and lower sets of pedestal o-rings
8 new 12 point bolts for the outlet housing
Includes additional compressor housing o-ring
4 inch turbo inlet hose and clamp

NOTE: Garrett's PARTS LIST included has a typographical error stating that it includes a V-BAND clamp when in reality it is the flat band clamp for the inlet hose at the turbo.
Garrett also has included a new turbo outlet o-ring but it is for the GTP-38 Early 99 turbo and will not fit this turbo. I will include the correct turbo outlet o-ring with every turbo at no additional charge.
Garrett Part #: 739619-5004S



INSTALLATION OF AN AFTERMARKET COMPRESSOR WHEEL WILL VOID THE MANUFACTURER'S WARRANTY



When upgrading your turbocharger to the Garrett Ball Bearing turbo, your intake system will have the capability to develop boost pressures in excess of what the computer is expecting. This will cause the PCM to open the wastegate prematurely, defueling the engine. The purpose of the overboost regulator is to regulate the boost pressure read by the MAP sensor. Overboosting can set an "overboost code" that sets the Service Engine Soon light and will cause the PCM to defuel the system when is reports pressures of 23 psi or more
