#14-033 GARRETT GTP-38 GTP38R EBP VALVE 1999-2003

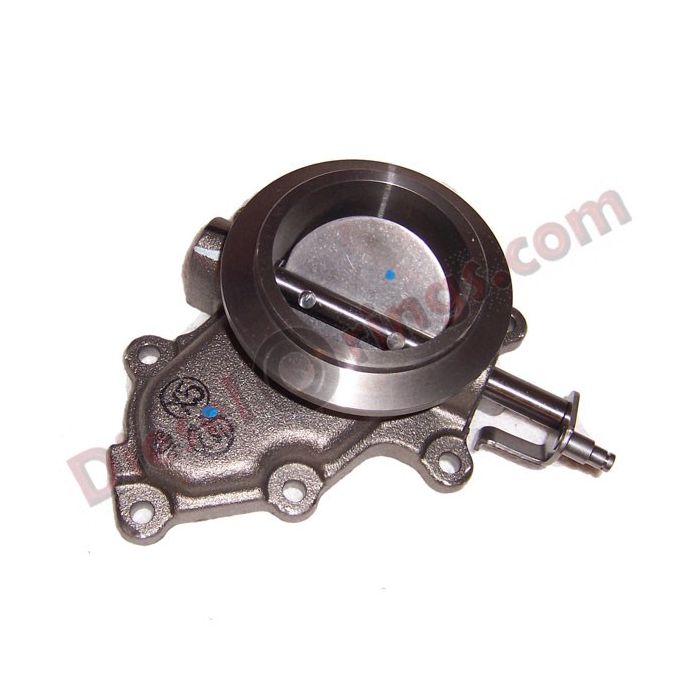

Garrett EBP Valve
Exhaust Back Pressure Outlet

Late 1999-2003 Ford 7.3L Diesels F series and Excursions

New Garrett EBP Valve outlet.

When the brass bushings in the valve become worn, the rod can no longer keep the valve plate centered in the outlet and will cause the valve to stick closed or open.

To test the condition of the valve, Garrett will clean the valve with an ultrasonic process and re-lube the brass bushings. If the valve continues to stick, the only option is to replace the valve.

Garrett does not recommend reusing the 12 point bolts the fasten the valve to the turbo body due to bolt stretch which will allow the bolts to unscrew themselves from the cast iron turbine housing.

451275-0008
