#13-005 SCHRADER VALVE - FUEL INJECTION RATED 1/8 MNPT
#13-005 SCHRADER VALVE - FUEL INJECTION RATED 1/8 MNPT
Couldn't load pickup availability
- Fuel Injection Schrader valve for fuel pressure test gauges. This is a standard 1/4" flare Schrader valve x 1/8" MNPT fitting. The larger flare fitting is a standard connector on all quality Fuel Injection Pressure test equipment and gauges. Valve core materials are teflon with a Viton cup.
-
- Continuous Operating Temp - 0 to 450 F
- System Pressure rating: 0 - 500 PSIG
- Viton Cup Washer for gasoline or diesel fuel
- Genuine Schrader-Bridgeport valve
Order of 1 contains: One 1/8" MNPT x 1/4" Schrader flare with one Viton core installed.

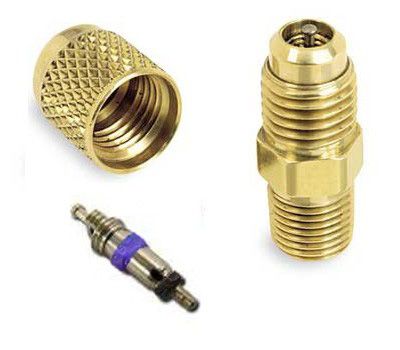

(picture of additional valve core is for descriptive purposes only)
This valve will fit both the straight and 90 degree Fuel Port adapters required for the 99-03 models or
it will replace the OEM Schrader valve in the 94.5-97 fuel bowls
Item #13-005 -
WARNING: Do not attempt to use a Schrader valve designed for air or refrigeration for test port applications on fuel injection systems as neither of these types of valve cores are rated for the engine temperatures found underhood or the corrosive actions of fuel compounds. The non-fuel rated types of valves will leak and will potentially cause a fire hazard under your hood!
WARNING: Do not use the Schrader valve when connecting a permanent fuel pressure gauge under the hood. This fitting is designed for temporary test port connections only.
Gasolia Add-On:
Gasoila Paste Thread SealantDiesel RatedNo matter how careful you may be using Teflon tape, small shreads can be introduced into the fuel and oil ports. If these small pieces of teflon find their way to your injectors, it can lead to big problems.Play it safe and use a paste thread sealant when working with NPT fittings on your diesel engine!
