Fumoto

#F111N FUMOTO F111N QUICK OIL DRAIN VALVE FOR LATE 1994 AND UP 7.3L AND 6.0L

#F111N FUMOTO F111N QUICK OIL DRAIN VALVE FOR LATE 1994 AND UP 7.3L AND 6.0L

Regular price $26.95 USD
Regular price Sale price $26.95 USD
Sale Out of stock
Shipping calculated at checkout.

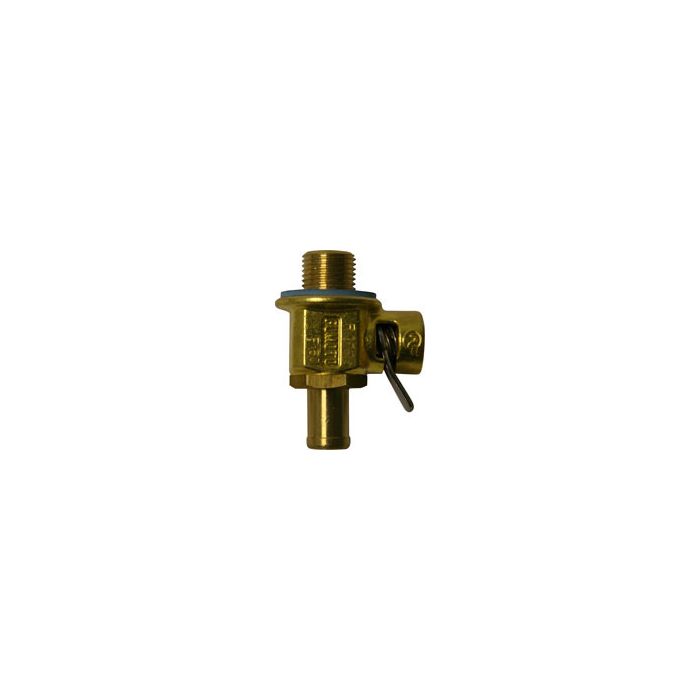

Fumoto quick oil drain valve for Late 1994 and up 7.3L, 6.0L and 6.4L Diesel engines with a nipple fitting for attaching a hose - complete with gasket.

This one hand quick drain valve makes oil changes a snap. The easy opening and closing valve allows for quick sampling for oil analysis, just lift the lever of this solid brass ball valve and turn a quarter turn to open. The easiest and cleanest way to change your oil and is a must have if your are running synthetic motor oil with oil sampling. The ball valve design gives a straight flow for quick draining.





 Installation:



  1. Remove original drain plug and drain oil into acceptable receptacle.
  2. Insert Engine Oil Drain Valve with gasket* and tighten. Do not over tighten. (Some oil pans are designed with recessed drain hole which may prevent the valve from being installed properly. If the valve can not be tightened all the way without hitting the oil pan wall, do not install the Drain Valve to your vehicle. Adaptors are available for some models)
  3. Make sure valve is closed and refill crankcase.

    *Some valves (i.e. T-200, T201, T-202, F-110) do not require gasket as they are self-tightening tapered threads.





  Fumoto valve operation







Operation:

  1. To open lift control lever and turn counter-clockwise 90 degrees.
  2. To close simply turn the lever clockwise 90 degrees until locked in original position.

Safety:

  1. Drive carefully at all times, and if you run over any foreign object on the road pull over and check the valve for any damage or leak.
  2. N-Series valve (with nipple to accept hose) is not recommended for passenger cars with low clearance.



Limited Warranty
Fumoto Engineering of America offers a LIFE TIME WARRANTY on its product, against faulty workmanship and/or material to the original purchaser (with proof of purchase). For any defective product, Fumoto Engineering of America will replace the product at no charge. Fumoto Engineering of America will also indemnify any consequencial damages to the engine/vehicle which are directly caused by the defective product. This warranty does not cover any damages due to misuse, abuse, negligence or accident. This warranty is valid only in the United States and Canada.
